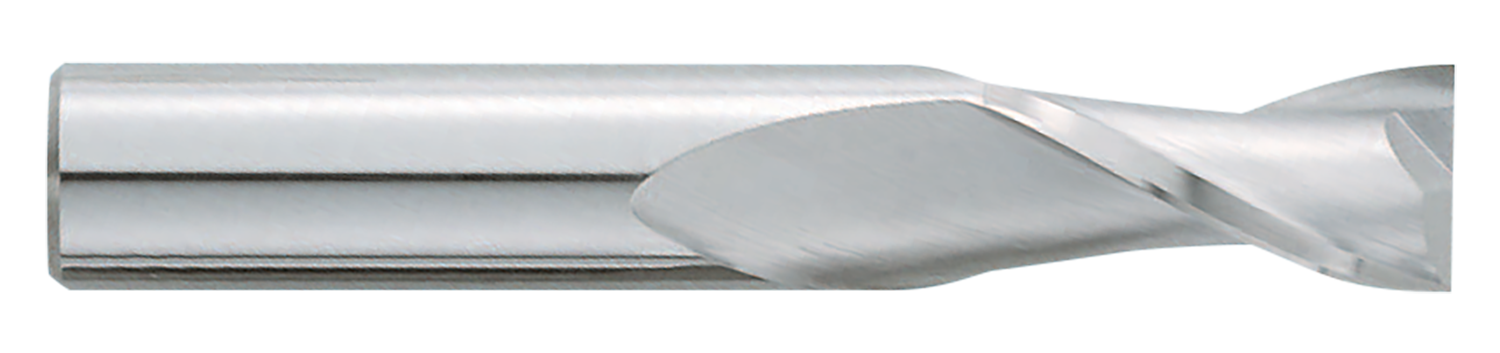

Series 860M Series Info EDP# 01530 2mm SQ EM 2FL 4mm F/L 3mm SH
  • Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 2.0000 4.0000 3.0000 - 38.0000 - - - SQ - 0.0100

DETAILS

    2mm SQ EM 2FL 4mm F/L 3mm SH
  • General Purpose
  • Stub Length - Square End - 2 Flutes
  • Solid submicron grain carbide end mill - center cutting
  • Shorter flute length for rigidity
  • Extremely versatile

TOLERANCES

  • < or = .030" flute dia. +.000-.001" (+0.000-0.025mm)
  • > or = 1/32" flute dia. +.000-.002" (+0.000-0.050mm)
  • shank dia. h6

QUANTITY ON HAND

  • usa 100+
  • uk 36

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $9.34 $8.93 $8.53 $8.12
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
