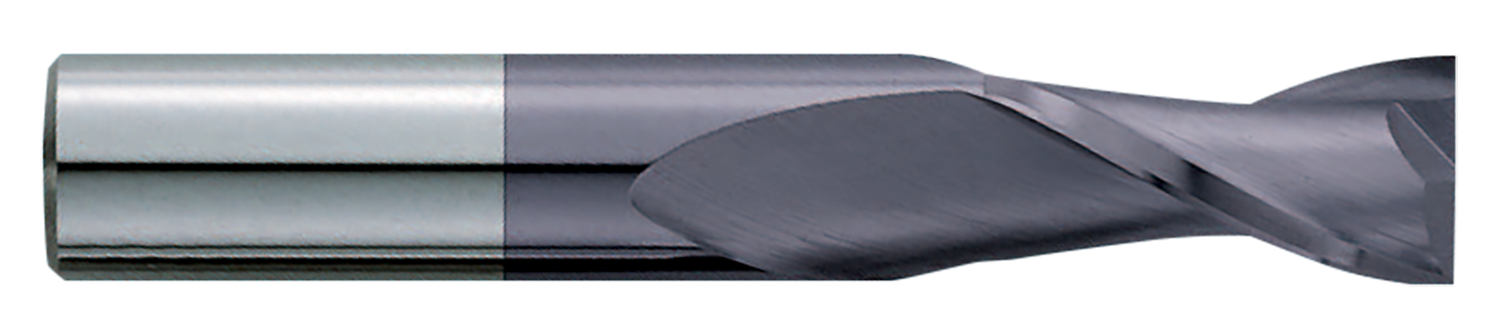

Series 860MA Series Info EDP# 01567 3.5mm SQ EM 2FL 7mm F/L 4mm SH *TiALN*
  • Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 3.5000 7.0000 4.0000 - 50.0000 - - - SQ - 0.0200 TIALN

DETAILS

    3.5mm SQ EM 2FL 7mm F/L 4mm SH *TiALN*
  • General Purpose
  • Stub Length - Square End - 2 Flutes - TiAlN Coating
  • Solid submicron grain carbide end mill - center cutting
  • Shorter flute length for rigidity
  • Dry or semi-dry machining
  • Extremely versatile

TOLERANCES

  • flute dia. +.000-.050mm
  • shank dia. h6

QUANTITY ON HAND

  • usa 22
  • uk 6

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $14.75 $14.11 $13.47 $12.83
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
