Series 875M Series Info EDP# 06520 1.5mm STUB EM SQ 4 FL D/E SMG
  • Flutes Flutes Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 4 1.5000 3.0000 3.0000 - 38.00 - - SQ - 0.0100

DETAILS

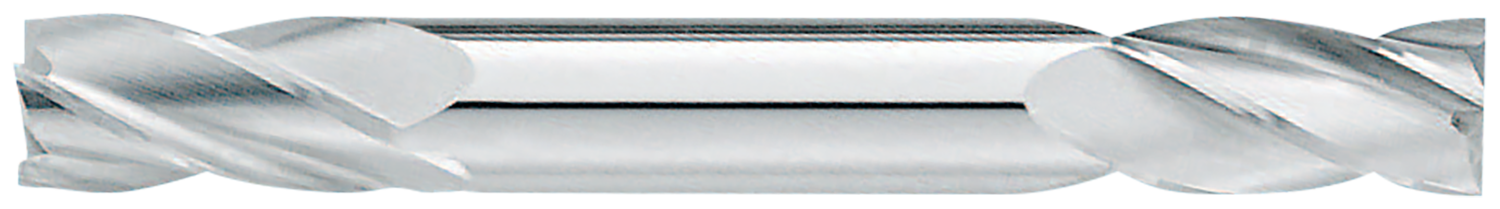

    1.5mm STUB EM SQ 4 FL D/E SMG
  • Solid submicron grain carbide end mill - center cutting
  • Shorter flute length for rigidity
  • 30 degree helix - rhs/rhc

TOLERANCES

  • flute dia. +.000-.002" (+.000-.050mm)
  • 3mm - 6mm shank dia. +.0000-.0003" (-0.0000-0.0075mm)
  • 1/4" - 1/2" shank dia. -.0001-.0004" (-0.0025-0.0100mm)

QUANTITY ON HAND

  • usa 30
  • uk 9

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $20.36 $19.47 $18.59 $17.70
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
