Series 223MA Series Info EDP# 12037 1/16" SQ EM 3FL 1/4" F/L 1/8" SH *TiALN*
  • Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 3 0.0625 0.2500 0.1250 - 1.5000 - - - SQ - 0.0100 TIALN

DETAILS

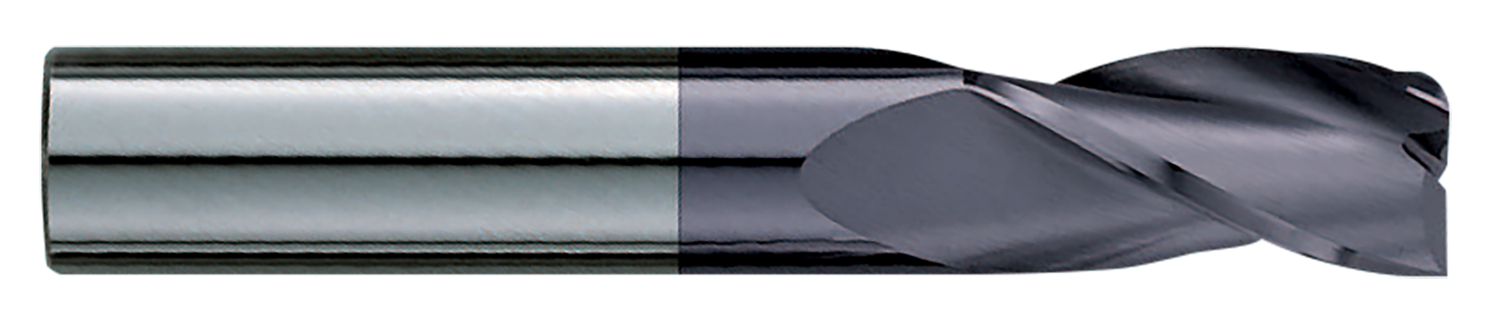

    1/16" SQ EM 3FL 1/4" F/L 1/8" SH *TiALN*
  • General Purpose
  • Standard Length - Square End - 3 Flutes - TiAlN Coating
  • Solid submicron grain carbide end mill - center cutting
  • Dry or semi-dry machining
  • Extremely versatile

TOLERANCES

  • flute dia. +.000-.002" (+0.000-0.050mm)
  • shank dia. h6

QUANTITY ON HAND

  • usa 100+
  • uk 15

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $13.09 $12.52 $11.95 $11.38
