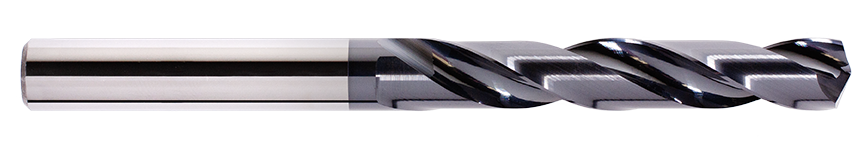

Series 1280H Series Info EDP# 21311 1/8" (.1250") 5xD H/P 2FL DR *AlTiN-based*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
2 0.1250 0.7500 0.1250 - 2.0000 - - - 140° - 0.0100 AlTiN-based

DETAILS

1/8" (.1250") 5xD H/P 2FL DR *AlTiN-based*

For High Nickel, High Temp. Alloys, Cobalt-based Alloys, Stainless, and Tool Steels >40Rc
2 Flutes - BALIQ ALTINOS Coating
High Performance - High Penetration solid submicron grain carbide drill
Extended tool life and greater surface finish through faster SFM rates
Up to 50% faster than standard carbide drills
30 deg. helix for better chip evacuation
Honed cutting edge
Live tooling recommended on lathe processes

TOLERANCES

diameter +.0000-.0005" (+0.0000-0.0127mm)
overall length +.125"-.125" (+3.175-3.175mm)
flute length +.125"-.125" (+3.175-3.175mm)

TECH PAGES

QUANTITY ON HAND

usa 43
uk 3

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $34.94 $33.42 $31.90 $30.38

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote

WARNING:

This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.
