Series 142R Series Info EDP# 39342 5x65mm HSAL .3mm 2FL 16mm F/L 6mm SH *ALUMA*
  • Flutes Flute Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 5.0000 16.0000 6.0000 - 65.0000 - - 0.3000 RAD - 0.0540 ALUMASTAR

DETAILS

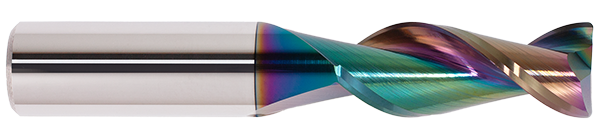

    5x65mm HSAL .3mm 2FL 16mm F/L 6mm SH *ALUMA*
  • Solid submicron grain carbide end mill - center cutting
  • Specific coating engineered to repel aluminum
  • Engineered to run at 750 - 2500 SFM
  • For high speed machining of aluminum
  • High velocity - high metal removal rate
  • Use properly balanced holders
  • Holds perpendicularity
  • Flats can be added within 48 hours for a nominal charge
  • Radius tolerance +.0005"-.0005"(+.0127mm-.0127mm)

TOLERANCES

  • flute dia. +.000-.001" (+0.000-0.025mm)
  • shank dia. h6
  • radius +.0005-.0005" (+0.0127-0.0127mm)

QUANTITY ON HAND

  • usa 25
  • uk 3

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $31.31 $29.95 $28.59 $27.23
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
