Series 855MA Series Info EDP# 40057 3x50mm SQ 5FL 12mm F/L *AlTiN*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
5 3.0000 12.0000 3.0000 - 50.0000 - - - SQ - 0.0100 AlTiN

DETAILS

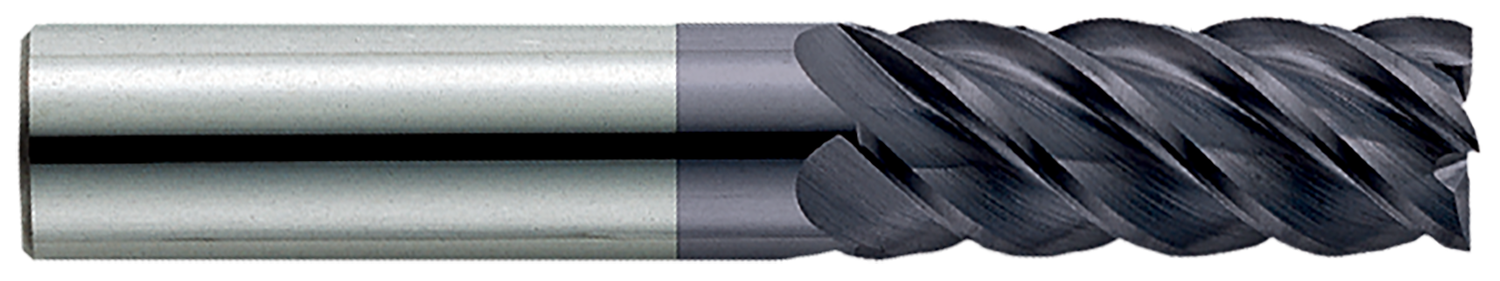

3x50mm SQ 5FL 12mm F/L *AlTiN*

For Steels, Stainless Steel, and Exotics
Square End - 5 Flute - 45 Degree Helix - AlTiN Coating
Solid submicron grain carbide end mill - center cutting
High performance milling
Rigid work holding, machine stability and part integrity are critical
Dry or semi-dry machining
Improved finishes in titanium
Heavy core, Sharp corners

TOLERANCES

flute dia. +0.000-0.050mm
shank dia. h6

TECH PAGES

QUANTITY ON HAND

usa 70
uk 13

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $17.85 $17.07 $16.30 $15.52

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
