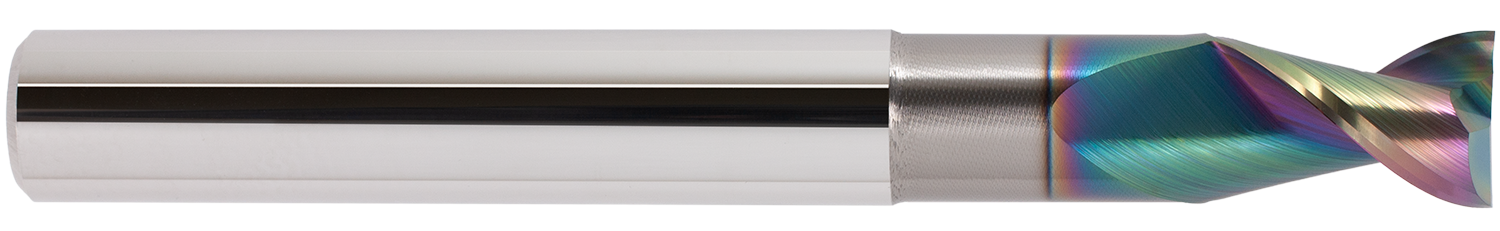

Series 142M Series Info EDP# 41352 5x75mm HSAL SQ 2FL 8mm F/L 20mm RL *ALUMA*
  • Flutes Flute Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 5.0000 8.0000 6.0000 4.7000 75.0000 20.0000 12.0000 - SQ - 0.0700 ALUMASTAR

DETAILS

    5x75mm HSAL SQ 2FL 8mm F/L 20mm RL *ALUMA*
  • Solid submicron grain carbide end mill - center cutting
  • Specific coating engineered to repel aluminum
  • Engineered to run at 750 - 2500 SFM
  • For high speed machining of aluminum
  • High velocity - high metal removal rate
  • Use properly balanced holders
  • Holds perpendicularity
  • Flats can be added within 48 hours for a nominal charge

TOLERANCES

  • flute dia. +.000-.001" (+0.000-0.025mm)
  • shank dia. h6

QUANTITY ON HAND

  • usa 31
  • uk 9

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $45.51 $43.53 $41.55 $39.57
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
