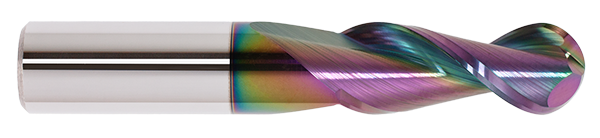

Series 142B Series Info EDP# 42762 1/4x2-1/2" BALL 2FL 3/4" F/L HSAL *ALUMASTAR*
  • Flutes Flute Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 0.2500 0.7500 0.2500 - 2.5000 - - - BALL - 0.0600 ALUMASTAR

DETAILS

    1/4x2-1/2" BALL 2FL 3/4" F/L HSAL *ALUMASTAR*
  • Solid submicron grain carbide end mill - center cutting
  • Specific coating engineered to repel aluminum
  • Engineered to run at 750 - 2500 SFM
  • For high speed machining of aluminum
  • High velocity - high metal removal rate
  • Use properly balanced holders
  • Holds perpendicularity
  • Flats can be added within 48 hours for a nominal charge
  • Tolerance on ball radius is +.0000-.0005" (+0.0000-0.0127mm)

TOLERANCES

  • flute dia. +.000-.001" (+0.000-0.025mm)
  • shank dia. h6

QUANTITY ON HAND

  • usa 100+
  • uk 3

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $28.80 $27.54 $26.29 $25.04
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
