GARR TOOL - Product Details

QUICK SEARCH

Series 142B Series Info EDP# 42764 1/4x4" HSAL BALL 2FL 3/8" F/L 1-1/8"R/L *ALUMA*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
2 0.2500 0.3750 0.2500 0.2380 4.0000 1.1250 0.7500 - BALL - 0.1000 ALUMASTAR

DETAILS

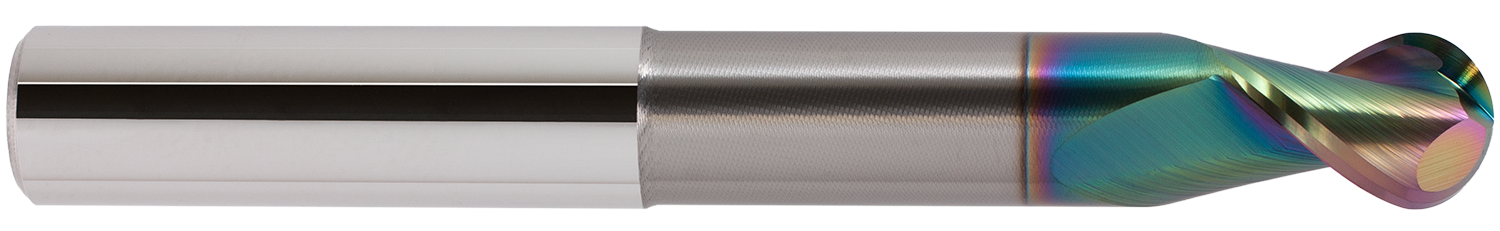

1/4x4" HSAL BALL 2FL 3/8" F/L 1-1/8"R/L *ALUMA*

Solid submicron grain carbide end mill - center cutting
Specific coating engineered to repel aluminum
Engineered to run at 750 - 2500 SFM
For high speed machining of aluminum
High velocity - high metal removal rate
Use properly balanced holders
Holds perpendicularity
Flats can be added within 48 hours for a nominal charge
Tolerance on ball radius is +.0000-.0005" (+0.0000-0.0127mm)

TOLERANCES

flute dia. +.000-.001" (+0.000-0.025mm)
shank dia. h6

TECH PAGES

QUANTITY ON HAND

usa 11
uk 3

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $51.89 $49.63 $47.38 $45.12

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote

WARNING:

This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.
