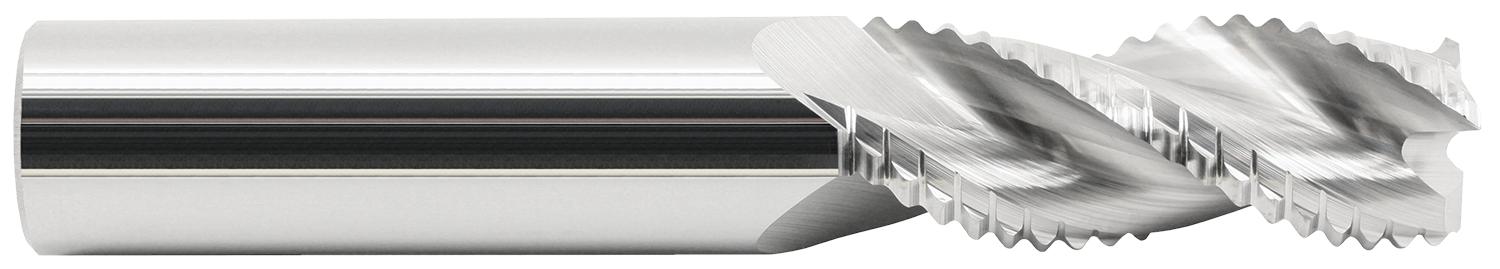

Series ARC Series Info EDP# 46219 4x50x8mm 3FL 8mm F/L
  • Flutes Flute Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 3 4.0000 8.0000 6.0000 - 50.0000 - - - CMFR - 0.0400

DETAILS

    4x50x8mm 3FL 8mm F/L
  • Solid submicron grain carbide end mill - center cutting
  • Wave knuckle design to break up chips
  • Each flute has individual helix angle to break up harmonics
  • Reduces tool pressure requiring less machine power
  • Designed for roughing Aluminum Alloys
  • Furnished with a 45 degree lead chamfer

TOLERANCES

  • flute dia. +.000-.002" (+.00-.050mm)
  • shank dia. h6

QUANTITY ON HAND

  • usa 59
  • uk 10

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $32.86 $31.43 $30.00 $28.57
