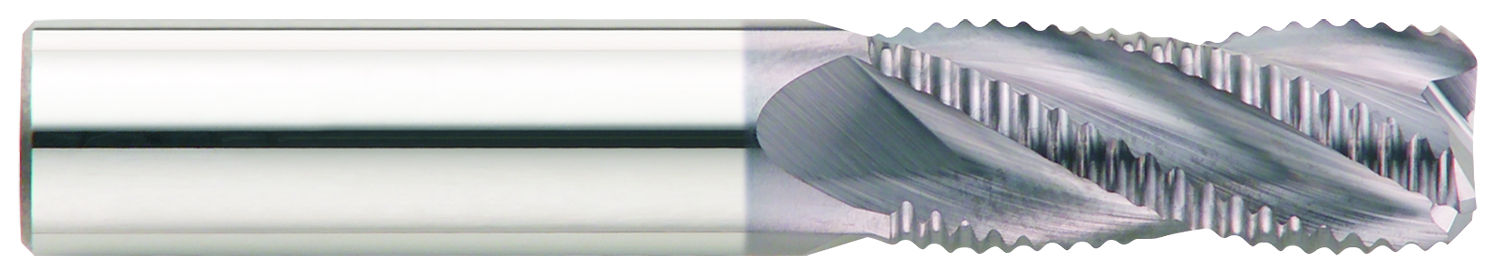

Series VHM Series Info EDP# 49470 3/16x2" 4FL 5/16" F/L *AlTiN*
  • Flutes Flute Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 4 0.1875 0.3125 0.1875 - 2.0000 - - - CMFR - 0.0290 AlTiN

DETAILS

    3/16x2" 4FL 5/16" F/L *AlTiN*
  • Solid submicron grain carbide end mill - center cutting
  • State-of-the-art rougher using Variable flute geometry
  • For stainless steel, inconel, pH materials, cold rolled steel, titanium, cast iron and tool steels
  • Furnished with a standard 45 degree lead chamfer

TOLERANCES

  • flute dia. +.000-.002" (+.000-.050mm)
  • 3mm - 6mm shank dia. +.0000-.0003" (-0.0000-0.0075mm)
  • 1/4" - 1" shank dia. -.0001-.0004" (-0.0025-0.0100mm)

QUANTITY ON HAND

  • usa 100+
  • uk 6

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $30.31 $29.00 $27.68 $26.36
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
