Series 723MA Series Info EDP# 55557 BALL 3FL 1-1/8" F/L *TiALN*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
3 0.1875 1.1250 0.1875 - 3.0000 - - - BALL - 0.0400 TIALN

DETAILS

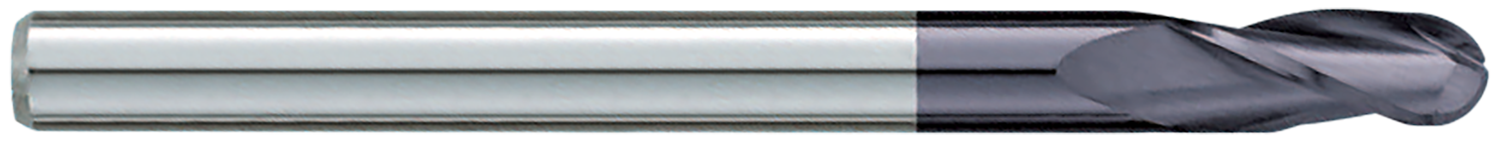

BALL 3FL 1-1/8" F/L *TiALN*

General Purpose
Extra Length - Ball End - 3 Flutes - TiAlN Coating
Solid submicron grain carbide end mill - center cutting
Extended reach
Dry or semi-dry machining
Can be modified with a neck within 48 hours
Extremely versatile

TOLERANCES

flute dia. +.000-.002" (+0.000-0.050mm)
shank dia. h6
ball radius +.000-.001" (+0.000-0.025mm)

TECH PAGES

QUANTITY ON HAND

usa 12
uk Call

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $30.82 $29.48 $28.14 $26.80
