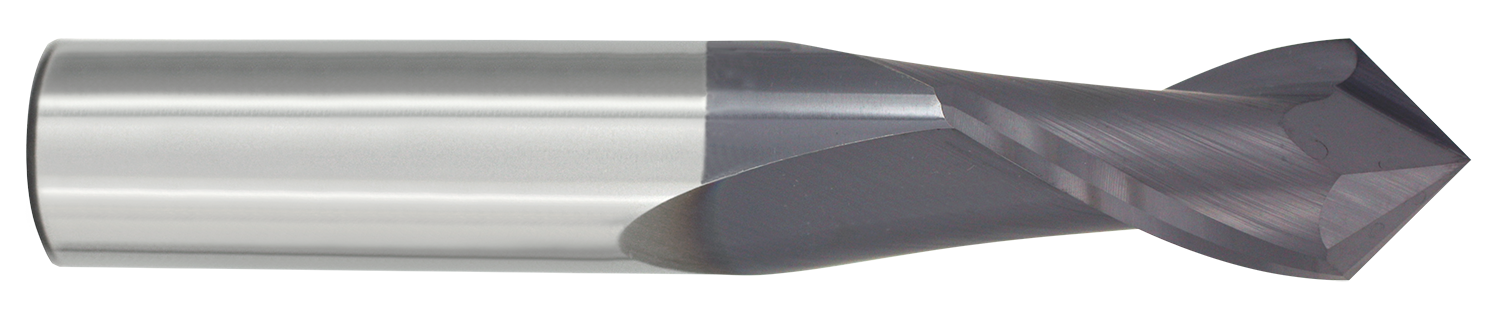

Series 152MA Series Info EDP# 57257 7/16" DIA. 2FL 90 DEG. *TIALN
  • Flutes Flutes Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 0.4375 1.0000 0.4375 - 2.75 - - - 0.1800 TIALN

DETAILS

    7/16" DIA. 2FL 90 DEG. *TIALN
  • Solid submicron grain carbide drill/end mill
  • Included angle to a point - center cutting
  • Tools do not have drill point geometry
  • Extremely versatile

TOLERANCES

  • flute dia. +.000-.002
  • shank dia. 1/8 - 3/16 +.0000-.0003
  • shank dia. 1/4 - 3/4 -.0001-.0004

QUANTITY ON HAND

  • usa 27
  • uk 6

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $45.21 $43.24 $41.28 $39.31
