Series 152DA Series Info EDP# 57431 6mm DIA 2FL D/M 120 DEG TIALN
  • Flutes Flutes Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 6.0000 19.0000 6.0000 - 65.00 - - - 0.0900 TIALN

DETAILS

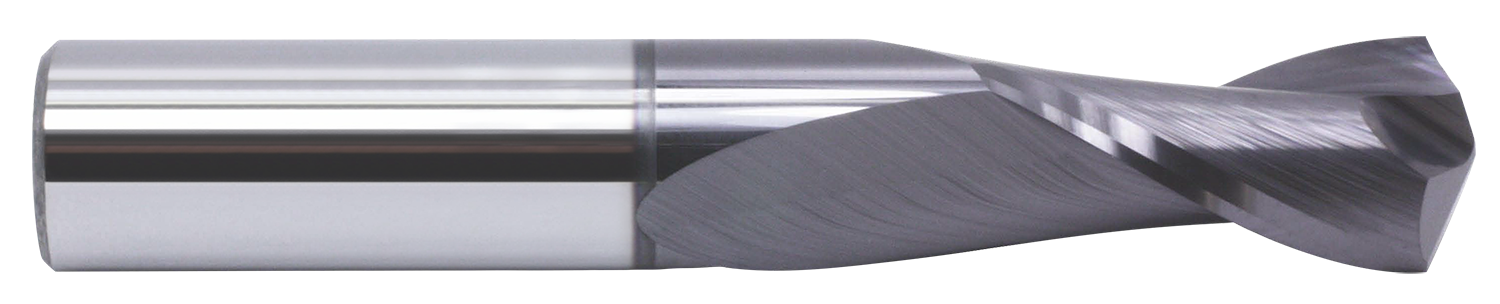

    6mm DIA 2FL D/M 120 DEG TIALN
  • Solid submicron grain carbide drill/end mill
  • For drilling and milling mild steels and non-ferrous materials
  • Four-facet drill point geometry
  • Extremely versatile

TOLERANCES

  • flute dia. +.000-.002
  • shank dia. 3mm - 6mm +.0000-.0003" (+0.0000-0.0075mm)
  • shank dia. 1/4" - 20mm -.0001"-.0004" (-0.0025mm-0.0100mm)

QUANTITY ON HAND

  • usa 19
  • uk 5

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $24.56 $23.50 $22.43 $21.36
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
WARNING:

This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.
