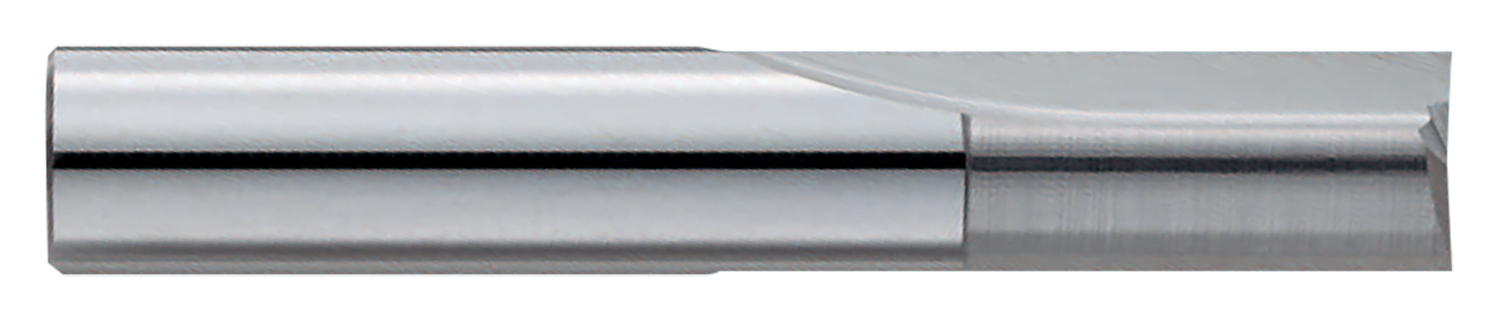

Series 222M Series Info EDP# 81110 3/16" SQ EM 2-STR FL 5/8" F/L
  • Flutes Flute Diamater Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 0.1875 0.6250 0.1875 - 2.0000 - - - SQ - 0.0300

DETAILS

    3/16" SQ EM 2-STR FL 5/8" F/L
  • Solid carbide submicron grain carbide - center cutting
  • For cutting high Rockwell materials
  • Helps to hold perpendicularity

TOLERANCES

  • flute dia. +.000-.002
  • 1/8" - 3/16" shank dia. +.0000-.0003" (-0.0000-0.0075mm)
  • 1/4" - 1" shank dia. -.0001-.0004" (-0.0025-0.0100mm)

QUANTITY ON HAND

  • usa 25
  • uk 6

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $13.58 $12.99 $12.40 $11.81
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
