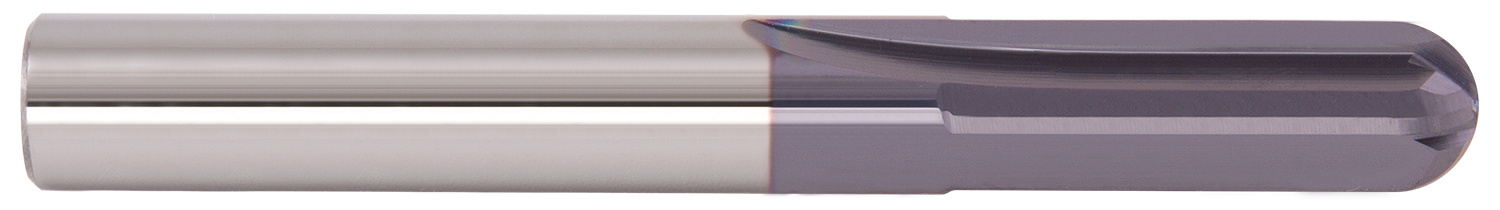

Series 334MA Series Info EDP# 84237 3/8" BALL EM 4-STR FL 7/8" F/L *TiAlN*
  • Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 4 0.3750 0.8750 0.3750 - 2.5000 - - - BALL - 0.1300 TIALN

DETAILS

    3/8" BALL EM 4-STR FL 7/8" F/L *TiAlN*
  • General Purpose - Standard Length
  • Ball End - 4 Straight Flutes - TiAlN Coating
  • Solid Submicron grain carbide end mill - center cutting
  • For cutting high Rockwell materials
  • Helps to hold perpendicularity

TOLERANCES

  • Flute dia. +.000-.002" (+0.000-0.050mm)
  • shank dia. h6
  • ball radius +.000-.001" (+0.000-0.025mm)

QUANTITY ON HAND

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $40.01 $38.27 $36.53 $34.79
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
