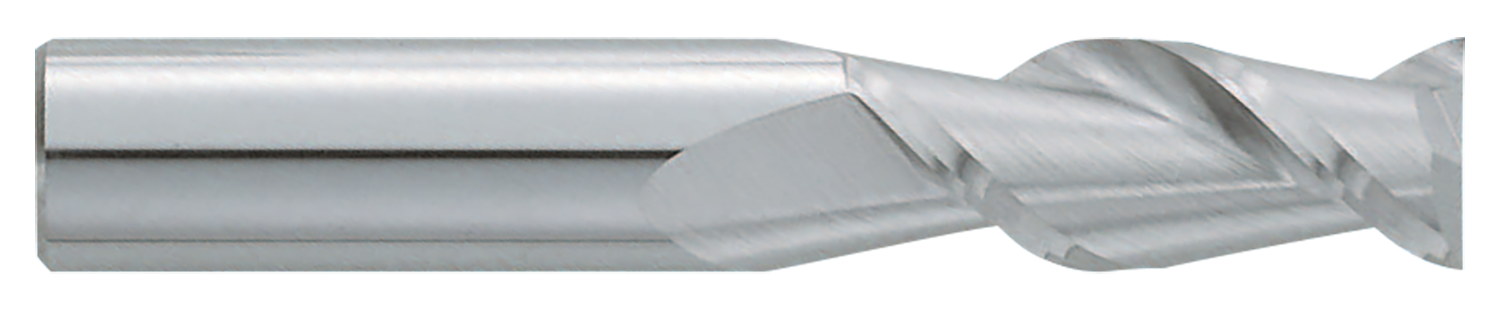

Series 242M Series Info EDP# 85220 1/4x2-1/2" SQ 2FL 1" F/L
  • Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 0.2500 1.0000 0.2500 - 2.5000 - - - SQ - 0.0600

DETAILS

    1/4x2-1/2" SQ 2FL 1" F/L
  • For Aluminum and Titanium
  • 2 Flute - 45 Degree Helix, Square End
  • Solid submicron grain carbide end mill - center cutting
  • High performance machining
  • Rigid work holding, machine stablility and part integrity are critical
  • Excellent choice for slotting
  • Polished cylindrical O.D. margin reduces chatter
  • Sharp corners (Can be modified with a corner radius)
  • Designed for spindles between 3,000 - 8,000 RPM, 1% dia. for chip load

TOLERANCES

  • flute dia. +.000-.001" ( +.000-.025mm)
  • shank dia. h6

QUANTITY ON HAND

  • usa 100+
  • uk 3

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $16.13 $15.43 $14.73 $14.03
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
