Series 640M Series Info EDP# 92010 3x50x16mm SQ EM 2FL 16mm F/L
  • Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 3.0000 16.0000 3.0000 - 50.0000 - - - SQ - 0.0100

DETAILS

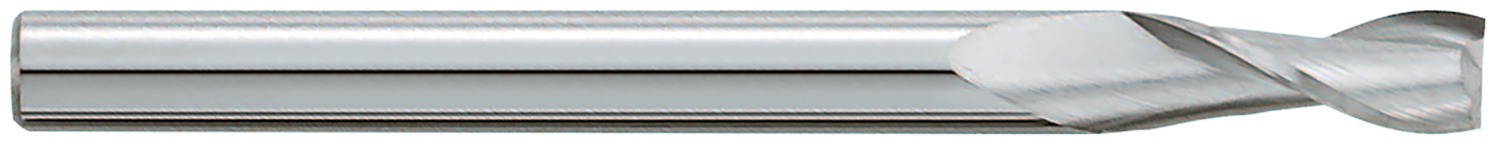

    3x50x16mm SQ EM 2FL 16mm F/L
  • Solid submicron grain carbide end mill - center cutting
  • Extended reach
  • Can be modified with a neck

TOLERANCES

  • flute dia. +.000-.002" (+.000-.050mm)
  • 3mm - 6mm shank dia. +.0000-.0003" (-0.0000-0.0075mm)
  • 1/4" - 1" shank dia. -.0001-.0004" (-0.0025-0.0100mm)

QUANTITY ON HAND

  • usa 50
  • uk 13

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $12.72 $12.17 $11.61 $11.06
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
