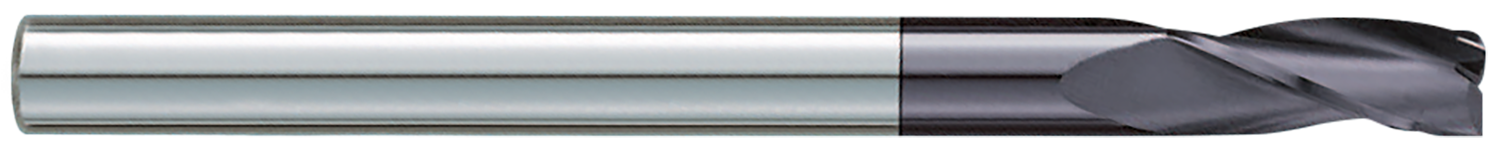

Series 643MA Series Info EDP# 93037 3x75x25mm SQ 3FL 25mm F/L *TiALN*
  • Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 3 3.0000 25.0000 3.0000 - 75.0000 - - - SQ - 0.0200 TIALN

DETAILS

    3x75x25mm SQ 3FL 25mm F/L *TiALN*
  • General Purpose
  • Extra Length - Square End - 3 Flutes - TiAlN Coating
  • Solid submicron grain carbide end mill - center cutting
  • Extended reach
  • Dry or semi-dry machining
  • Can be modified with a neck within 48 hours
  • Extremely versatile

TOLERANCES

  • flute dia. +0.000-0.050mm
  • shank dia. h6

QUANTITY ON HAND

  • usa 100+
  • uk 54

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $24.29 $23.23 $22.18 $21.12
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
