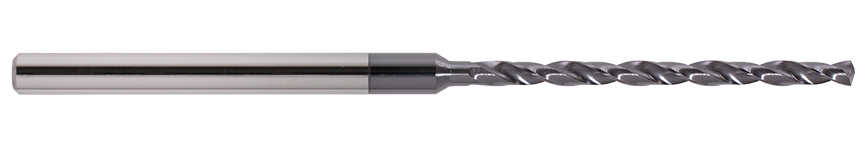

Series 1850H Series Info EDP# 00510 1/32" (.0312") 12XD H/P 2FL DR **ALTINOS*
  • Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length (L.B.S.) Neck Length Behind Flutes Corner Radius End
    Type
    Flat Weight (lbs) Coating
  • 2 0.0312 0.4375 0.1250 - 2.0000 - - - 140° - 0.0100 ALTINOS

DETAILS

    1/32" (.0312") 12XD H/P 2FL DR **ALTINOS*
  • For High Nickel, High Temp Alloys, Cobalt-based Alloys, Stainless, and Tool Steels >40Rc
  • 2 Flutes - BALIQ ALTINOS Coating
  • High performance solid submicron grain carbide drill on 3mm or 1/8" dia. shank
  • 30 deg helix for better chip evacuation
  • Live tooling recommended on lathe processes

TOLERANCES

  • flute dia. +.0000-.0004" (+0.000-0.010mm)
  • shank dia. h6
  • flute length +.125"-.125" (+3.175-3.175mm)

QUANTITY ON HAND

  • usa 57
  • uk 4

PRICING

  • QUANTITY: 1-11 12-24 25-49 50-100
  • PRICING: $43.75 $41.84 $39.94 $38.04
how to buy >
Not quite what you’re looking for? Request a Special Tool Quote
